64 12 600 Removing and installing or replacing fuel pump (auxiliary heater)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

13 3 010

Recycling

Fuel escapes when fuel lines are detached. Have a suitable collecting vessel ready.

Catch and dispose of escaping fuel.

Observe country-specific waste disposal regulations.

Seal off fuel hoses at fuel pump with special tool 13 3 010 .

Fig 1: Identifying Special Tool (13 3 010)

G04727677

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary work:

Remove LEFT UNDERBODY PANELLING

Removal:

Release hose clamps (1) and pull fuel lines off.

Unlock and disconnect connector (2).

Release screw (3).

Remove electric fuel pump (4).

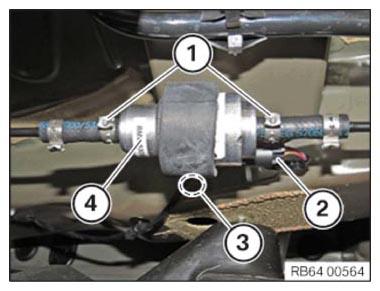

Fig 2: Identifying Electric Fuel Pump, Hose Clamps And Connector

G09949958

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mount electric fuel pump (4) and tighten screw (3).

Insert fuel lines and fasten with new hose clamps (1).

Connect connector (2).

NOTE: Observe direction of flow of fuel pump (4).

Fig 3: Identifying Electric Fuel Pump, Hose Clamps And Connector

G09949958

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Mount LEFT UNDERBODY PANELLING
