64 12 160 Removing and installing or replacing complete independent heater with bracket

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of burning!
Work on auxiliary heater may only be carried out when it has cooled down.

NOTE: CLAMP OFF coolant hoses on independent heater.

Recycling

Fuel escapes when fuel lines are detached. Have a suitable collecting vessel ready.

Catch and dispose of escaping fuel.

Observe country-specific waste disposal regulations.

Necessary preliminary tasks:

Remove LEFT WHEEL ARCH COVER

Removal:

Unclip intake silencer in marked area (2).

Release screws (2).

Disconnect fuel line (3).

Unlock connector (4) and disconnect.

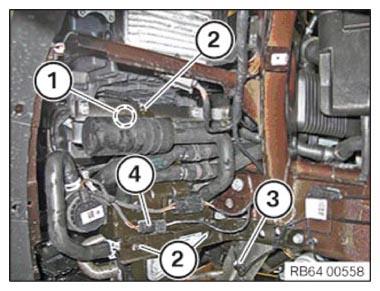

Fig 1: Identifying Intake Silencer, Fuel Line, Screws And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unclip the fuel line (2).

Detach the holder (3).

Fig 2: Identifying Holder, Fuel Line And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Cut open cable straps (1).

Unlock and disconnect connector (2).

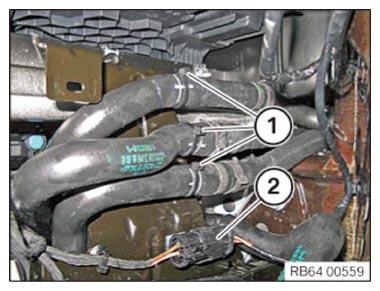

Fig 3: Identifying Cable Straps And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Secure auxiliary heater (2) against falling off/down!

Release spring band clamps (1) and detach coolant hoses.

Remove auxiliary heater (2).

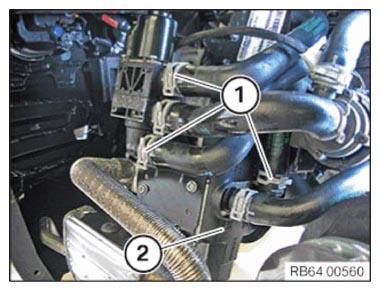

Fig 4: Identifying Auxiliary Heater And Spring Band Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release spring band clamp (1).

Release screws (2).

Tightening torque 64 12 2AZ .

Slacken clamp (3) and pull off exhaust hose.

Take off holder (4).

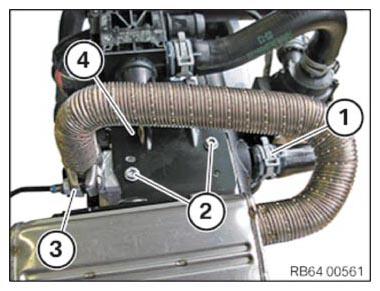

Fig 5: Identifying Spring Band Clamp, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect connector (1).

Pull off air intake hose (2).

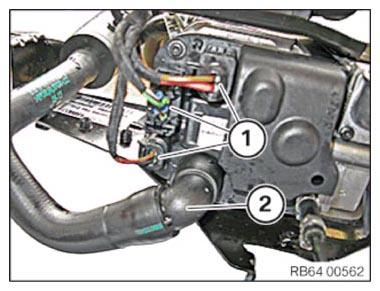

Fig 6: Identifying Air Intake Hose And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 64 12 3AZ .

Remove holder (2) from auxiliary heater (3).

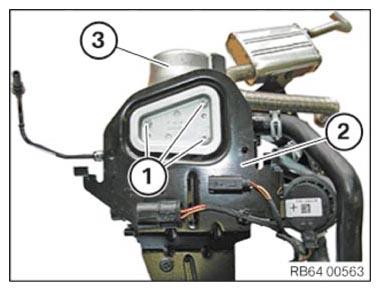

Fig 7: Identifying Holder From Auxiliary Heater And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position auxiliary heater (2) correctly.

Attach coolant hoses and secure by spring band clamps (1).

Fig 8: Identifying Auxiliary Heater And Spring Band Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector (2).

Replace and secure cable straps (1).

Fig 9: Identifying Cable Straps And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Position the holder (3) correctly.

Tighten down the screws (1).

Clip in the fuel line (2).

Fig 10: Identifying Holder, Fuel Line And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (2).

Tightening torque 64 12 1AZ .

Connect fuel line (3).

Connect the connector (4).

Clip in intake silencer in marked area (2).

Fig 11: Identifying Intake Silencer, Fuel Line, Screws And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install LEFT WHEEL ARCH COVER
Fill and vent cooling system and check for leaks. See 17 00 039 VENTING AND FILLING COOLING SYSTEM WITH VACUUM FILLING UNIT , 17 00 009 CHECKING COOLING SYSTEM FOR WATERTIGHTNESS , 17 00 039 BLEED COOLING SYSTEM AND CHECK FOR WATERTIGHTNESS (N52T, N55) or 17 00 039 VENTING COOLING SYSTEM AND CHECKING FOR WATERTIGHTNESS (N20)
