64 12 120 Removing and installing/replacing intake silencer for independent/auxiliary heater

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of burning!
Work on auxiliary heater may only be carried out when it has cooled down.

Necessary preliminary work:

Remove FRONT LEFT WHEEL ARCH COVER

Removal:

Pull air intake hose (1) off stationary/auxiliary heater.

Unclip intake silencer (2) in marked area.

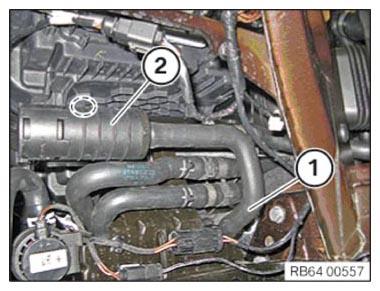

Fig 1: Identifying Air Intake Hose And Intake Silencer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: The mounting clip on the intake silencer must not be damaged!

Clip in intake silencer (2) in marked area.

Connect air intake hose (1) to stationary/auxiliary heater.

Fig 2: Identifying Air Intake Hose And Intake Silencer

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Mount FRONT LEFT WHEEL ARCH COVER
