64 12 060 Removing and installing/replacing complete electric auxiliary heating

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Risk of burning!

Carry out repair work only after engine has cooled down.

Necessary preliminary work:

Remove SUPPORT FOR DASHBOARD

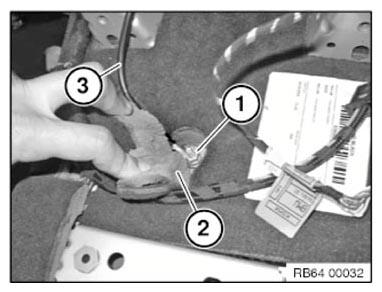

Fold up the carpet (2) as shown.

Slacken nut (1).

Take off earth cable (3).

Installation note:

Ensure correct line routing.

Fig 1: Folding Back Carpet

Courtesy of BMW OF NORTH AMERICA, INC.

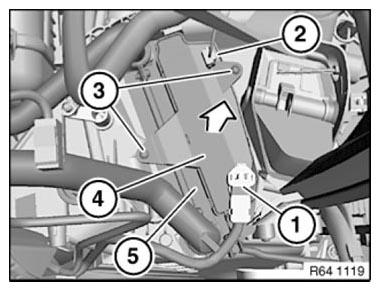

Unlock plug connections (1) and (2) and disconnect.

Release screws (3).

Remove electric auxiliary heater (4) in direction of arrow from the heating and air conditioning unit (5).

Fig 2: Removing Electric Auxiliary Heater From Heating And Air Conditioning Unit

Courtesy of BMW OF NORTH AMERICA, INC.
