16 19 045 Drawing off SCR passive tank content

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Ensure adequate ventilation in the workbay!
Avoid skin contact (wear gloves)!
Avoid eye contact (safety goggles)!
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.

IMPORTANT: Maintain conditions of absolute cleanliness.
Connections and covers of lines carrying urea/water mixture must be cleaned thoroughly with water after each removal or before each installation!
Thoroughly clean the working area with water after repair work.
Use fluff-free cloths for cleaning.
Close connections and lines!
Thoroughly clean special tool with water after each use.

Necessary preliminary work:

Remove rear right WHEEL ARCH PANEL .

Clamp off hose between passive tank and transfer pump (1) with hose clip (2).

Release hose clamp (3) and pull off hose (1) from transfer pump.

Installation note:

Replace hose clamp (3).

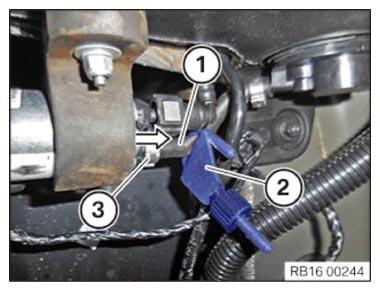

Fig 1: Pulling Hose From Transfer Pump

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Use extractor unit 2 302 782 (for 230V) or 2 302 919 (for 120V).
Attach adaptor hose 2 355 173 to the intake side of the extractor unit.
Before start-up of extractor unit urea/water mixture:
Comply with equipment manufacturer's operating instructions and safety regulations.
Note extraction direction (see arrow)!

Fig 2: Identifying Adaptor Hose (2 355 173)

Courtesy of BMW OF NORTH AMERICA, INC.

Connect adapter hose 2 355 173 of extractor unit on hose.

Remove hose clip (1).

Draw off urea/water mixture.

NOTE: Do not reuse drawn-off urea/water mixture.

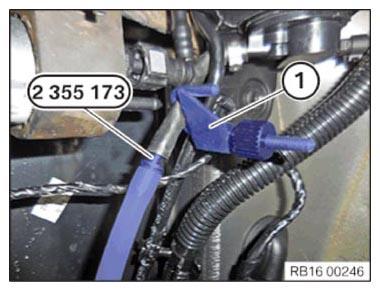

Fig 3: Connecting Adapter Hose (2 355 173)

Courtesy of BMW OF NORTH AMERICA, INC.
