16 19 020 Removing and installing/replacing active tank

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Ensure adequate ventilation in the workbay!
Avoid skin contact (wear gloves)!
Avoid eye contact (safety goggles)!
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.

IMPORTANT: Maintain conditions of absolute cleanliness.
Connections and covers of lines carrying urea/water mixture must be cleaned thoroughly with water after each removal or before each installation!
Thoroughly clean the working area with water after repair work.
Use fluff-free cloths for cleaning.
Close connections and lines!
Thoroughly clean special tool with water after each use.

Necessary preliminary work:

Draw off the SCR ACTIVE TANK .
Remove rear right WHEEL ARCH PANEL .
Remove REAR RIGHT UNDERBODY PANELLING .
Remove rear right heat shield.

Removal:

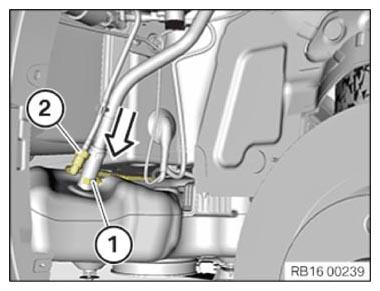

Release the hose clamp (1) and pull off the filling hose from the active tank.

Unlock and disconnect snap fastener (2).

Fig 1: Pulling Hose From Active Tank

Courtesy of BMW OF NORTH AMERICA, INC.

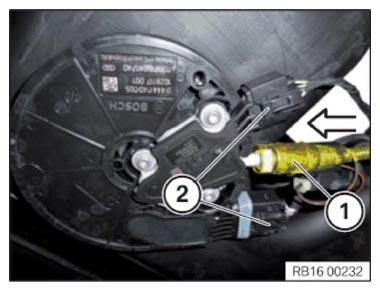

Unlock snap fastener (1) and pull off feed line.

Disconnect plug connections (2).

Fig 2: Identifying Snap Fastener And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

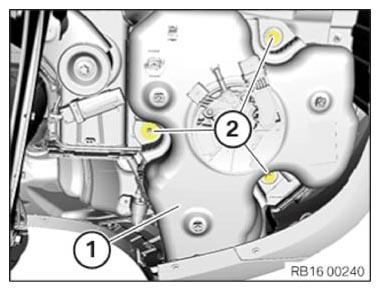

IMPORTANT: Support fuel tank (1) with workshop jack across a large area!

Unfasten screws (2).

Remove active tank (1) downwards.

Fig 3: Identifying Active Tank Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

IMPORTANT: Support active tank (1) with workshop jack across a large area!

Install the active tank (1).

Fit screws and nuts (2) and tighten.

Tightening torque: 16 19 1AZ .

Fig 4: Identifying Active Tank Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

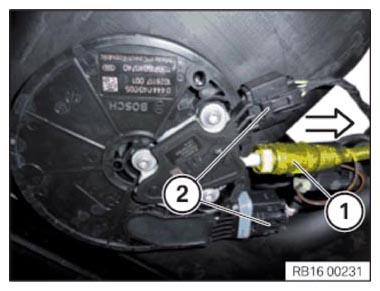

Position the feed line and lock the snap fastener (1).

Connect plug connections (2).

NOTE: Check correct engagement of snap fastener (1) by attempting to pull.

Fig 5: Connecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

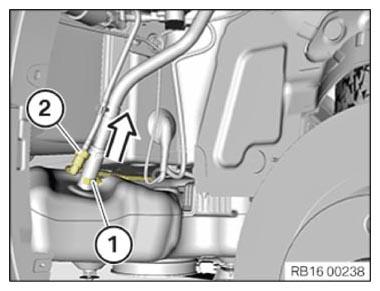

Mount the filling hose on the active tank.

Fit and lock hose clamp (1).

NOTE: Replace hose clamp (1).

Parts: Hose clamp

Position snap fastener (2) and lock.

Fig 6: Positioning Snap Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Fill the SCR RESERVOIR .
Mounting the rear right WHEEL ARCH PANEL .
Install the rear right underbody panelling.
Mount rear right heat shield.
