16 12 010 Removing and installing/replacing carbon canister (US version NVLD)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear right WHEEL ARCH PANEL .

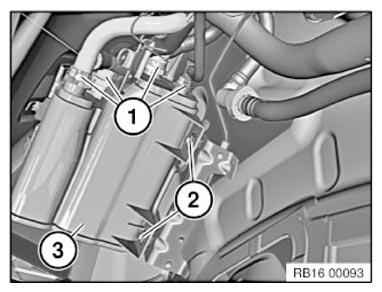

Unlock all snap fasteners (1) and disconnect tank ventilation lines.
Release screws (2) and swing out carbon canister (3).
Installation note:
Tightening torque: 16 13 1AZ .
