16 12 000 Removing and installing/replacing sensor for fuel gauge
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove FUEL PUMP WITH FUEL LEVEL SENSOR .

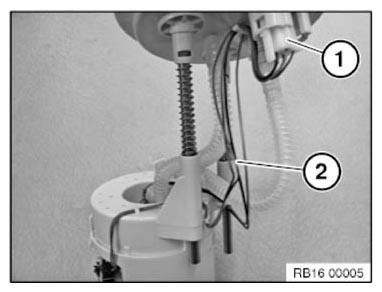

Release and disconnect plug connection (1) at fuel pump.
Installation note:
Check locking of plug connection by pulling.

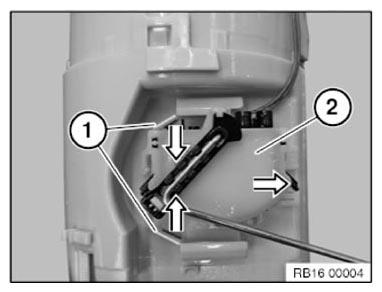

Release lugs (1) in direction of arrow.
Remove fuel level sensor (2) in direction of arrow.
Installation note:
Check that fuel level sensor (2) is locked in correctly.

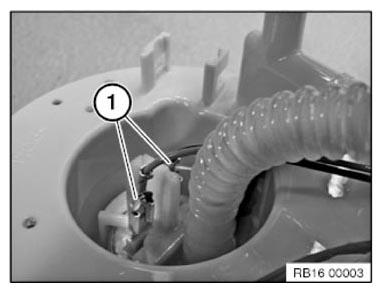

Disconnect plug connection (1) at flange cover.
Feed electrical lines (1) out of retaining fixtures and remove.
Installation note:
Ensure cable is installed and fitted in all holders correctly.
