16 13 521 Removing and installing/replacing pressure switch for Natural Vacuum Leak Detection (NVLD)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove WHEEL ARCH PANEL .

IMPORTANT: When replacing the pressure switch, the DUST FILTER must also always be replaced.

Release hose clamp (1) and pull off tank ventilation line.

Installation note:

Replace hose clamp.

Disconnect plug connection (2).

Release screws (3) and remove pressure switch with dust filter.

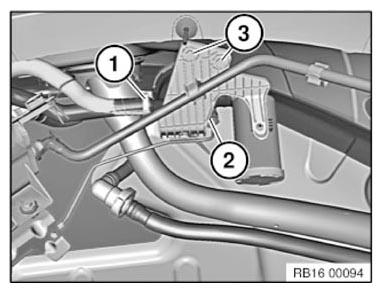

Fig 1: Identifying Tank Ventilation Line Hose Clamp And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Pull off pressure switch (2).

Installation note:

Check gaskets and replace if necessary.

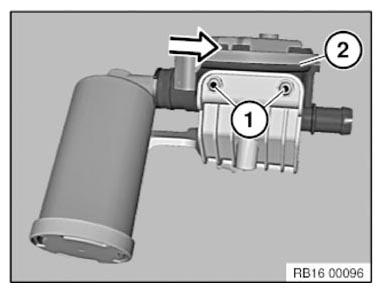

Fig 2: Pulling Natural Vacuum Leak Detection Pressure Switch

Courtesy of BMW OF NORTH AMERICA, INC.
