16 13 015 Removing and installing/replacing tank leak diagnosis module (petrol/gasoline cars with (US DMTL version)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove CARBON CANISTER .

Detach line (1).

Undo screws (2).

Remove diagnosis module (3).

Installation note:

Replace gasket (3).

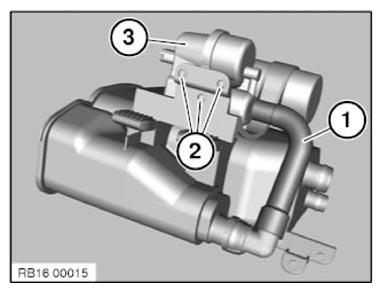

Fig 1: Identifying Diagnosis Module, Line And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
