61 31 704 Replacing center console operating facility (from 07/2012)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove CENTER CONSOLE OPERATING UNIT

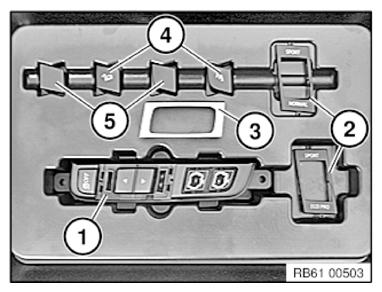

Graphic shows repair kit for center console operating facility.

Function buttons (4) or dummy caps (5) must be clipped into the correct position.

Incorrect assignment may result in damage to the operating element (1) or functional impairment.

Assign symbol element (2) and function buttons (4) or dummy caps (5) to operating facility (1) according to the used part version.

Fig 1: Identifying Center Console Operating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Fit operating element (1) with symbol element (2) and chrome frame (3).

Fit operating element (1) with function button (4) or dummy cap (5).

An incorrectly clipped function button (4) or dummy cap (5) can be levered out of the operating element (1) using a suitable tool.

Check locators on function button (4), these must not be damaged.

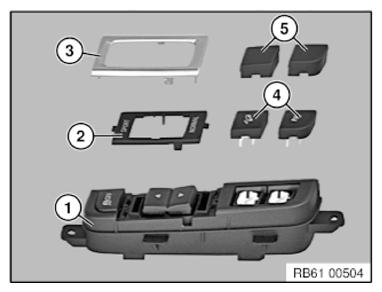

Fig 2: Identifying Operating Element With Symbol Element And Chrome Frame
