61 31 079 Removing and installing/replacing switch for hazard warning flashers

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 340

Removal:

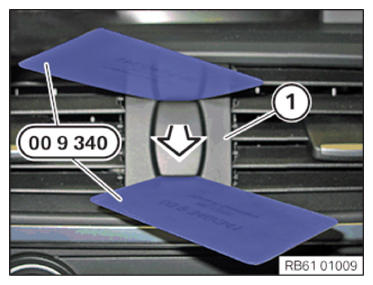

Carefully lever out switch for hazard warning system (1) with special tool 00 9 340 in direction of arrow.

Fig 1: Removing Switch For Hazard Warning System Using Special Tool 00 9 340

Courtesy of BMW OF NORTH AMERICA, INC.

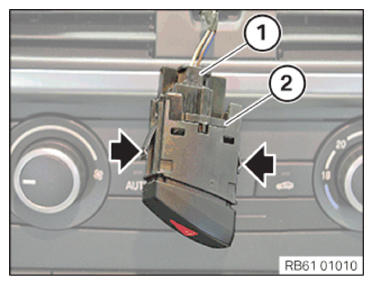

Unlock connector (1) on switch for hazard warning lights system (2) and disconnect.

Fig 2: Locating Connector Switch For Hazard Warning Lights System

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: The retaining clips on the switch for hazard warning lights system (2) must not be damaged or missing.

Connect connector (1) to switch for hazard warning lights system (2).

Fig 3: Locating Connector Switch For Hazard Warning Lights System

Courtesy of BMW OF NORTH AMERICA, INC.

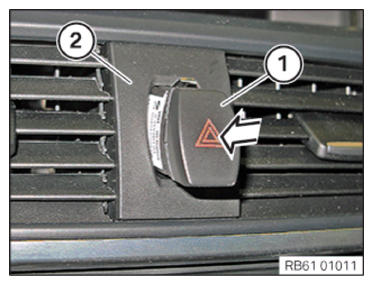

Join switch for hazard warning lights system (1) in direction of arrow to trim (2).

NOTE: Make sure switch for hazard warning flashers (1) is correctly seated.

Fig 4: Installing Switch For Hazard Warning Lights System

Courtesy of BMW OF NORTH AMERICA, INC.
