61 67 122 Removing and installing/renewing right high-pressure nozzle of headlight cleaning system

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 340

Necessary preliminary tasks:

Remove FRONT WHEEL ARCH COVER ON RIGHT .

Use special tool 00 9 340 to lift the cover (1).

Fig 1: Lifting Cover Using Special Tool 00 9 340

Courtesy of BMW OF NORTH AMERICA, INC.

Build date up to 04/2014

Slowly pull out high-pressure nozzle of headlight washer system (1) at cover (2).

Unclip cover (2) in direction of arrow and remove.

Allow high-pressure nozzle of headlight washer system (1) to slide back slowly.

Fig 2: Pulling Out High-Pressure Nozzle Of Headlight Washer System At Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Build date from 04/2014

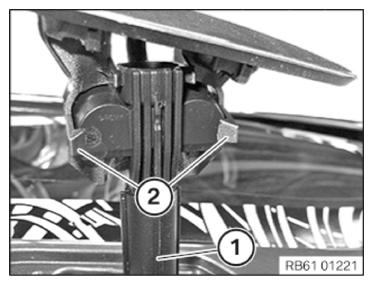

Slowly pull out high-pressure nozzle of headlight cleaning system (1).

Unclip cover from retaining lugs (2) and remove.

Allow high-pressure nozzle of headlight washer system (1) to slide back slowly.

Fig 3: Identifying High-Pressure Nozzle Of Headlight Washer System With Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

For N57 with additional radiator or N55 with additional engine oil cooler:

Loosen screws (1) and remove additional radiator (2) in the direction of the arrow and secure it against falling.

Fig 4: Identifying Auxiliary Cooler From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove cover (2).

Fig 5: Identifying Air Duct With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

All vehicles:

Unlock safety coupling (1) of high-pressure line (2) and detach high-pressure line (2) in direction of arrow.

Lift retaining lugs (3) in direction of arrow and feed high-pressure nozzle (4) towards rear out of bumper panel.

Installation note:

Keep hose connection for high-pressure nozzle (4) and high-pressure line (2) clean and free from grease.

Fig 6: Detaching High-Pressure Line

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure high-pressure line (2) is correctly engaged on high-pressure nozzle (4).

Make sure high-pressure nozzle (4) is correctly engaged on front bumper panel.

Carry out a function check before fitting bumper panel.

If necessary, top up washer fluid.
