71 60 700 Removing and installing/replacing trailer tow hitch control unit

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD PROTECTION) .

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL .

Removal:

Release clip (1) and fold up storage shelf (2).

Fig 1: Identifying Storage Shelf With Clamps

G09950153

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect all connectors (1).

Remove trailer tow hitch control unit (2) from holder.

Fig 2: Identifying Trailer Tow Hitch Control Unit

G09949672

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join the trailer tow hitch control unit (3) into the holder.

Connect all connectors (1).

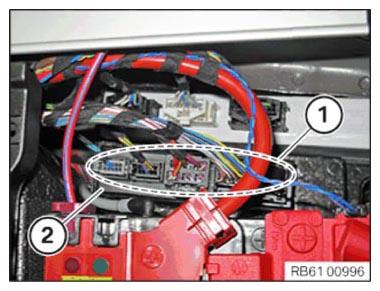

Fig 3: Identifying Trailer Tow Hitch Control Unit

G09950275

Courtesy of BMW OF NORTH AMERICA, INC.

Close storage shelf (2) and fasten with clip (1).

Fig 4: Identifying Storage Shelf With Clamps

G09950153

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
