61 35 970 Removing and installing/replacing luggage compartment aerial for Comfort Access (left)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON LEFT .

Removal:

Disconnect the connector (1).

Release screw (2) and remove luggage compartment aerial for Comfort Access (3).

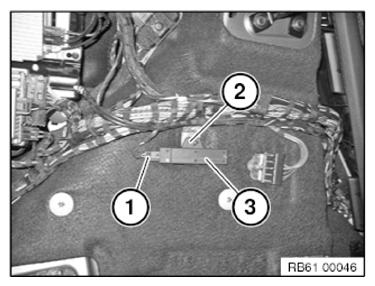

Fig 1: Identifying Luggage Compartment Aerial For Comfort Access With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tighten luggage compartment aerial for Comfort Access (3) with screw (2).

Connect the connector (1).

Fig 2: Identifying Luggage Compartment Aerial For Comfort Access With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install LUGGAGE COMPARTMENT WHEEL ARCH PANEL, LEFT .
