61 35 954 Removing and installing/replacing interior aerial for Comfort Access (rear storage compartment)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove CENTER ARMREST STORAGE COMPARTMENT .

Disconnect plug connection (1).

Release screw (2) and remove interior aerial for Comfort Access (3).

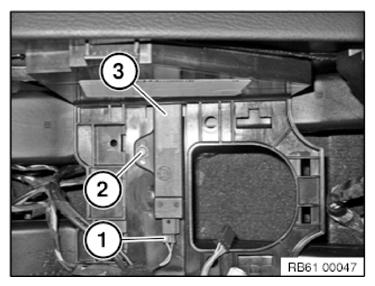

Fig 1: Identifying Interior Aerial For Comfort Access Plug Connection With Screws

Courtesy of BMW OF NORTH AMERICA, INC.
