61 35 360 Removing and installing/replacing control unit for camera-based driver support systems (KAFAS)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks:

Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT
Remove trim panel for pedal mechanism . See 51 45 184 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR PEDAL ASSEMBLY (ECE ONLY) or 51 45 184 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR PEDAL ASSEMBLY (US ONLY)

Release latch mechanism (1) on equipment holder.

Feed out control unit (2) from equipment holder towards the top.

Disconnect connector (3) and remove control unit (2).

Installation note:

Ensure correct installation of control unit (2) in the equipment holder.

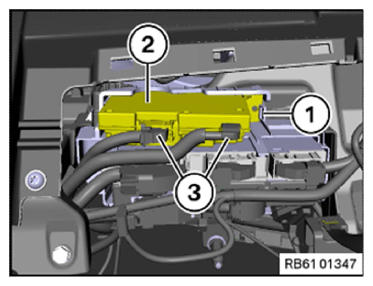

Fig 1: Identifying Latch Mechanism On Equipment Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING .

Carry out calibration:

Service function
Body
Display and information functions
Camera-based driver support systems
Calibration of lane departure warning
