61 35 015 Removing and installing (replacing) control unit for Car Access System
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .
Necessary preliminary work:
- Disconnect BATTERY GROUND LEAD
- Remove trim panel for pedal mechanism . See 51 45 184 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR PEDAL ASSEMBLY (ECE ONLY) or 51 45 184 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR PEDAL ASSEMBLY (US ONLY) .

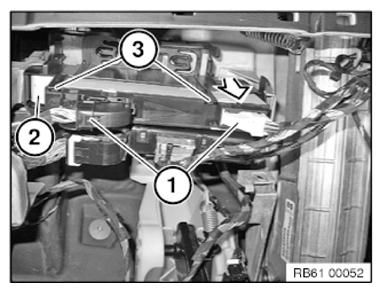

Unlock plug connections (1) and disconnect.
Release control unit for car access system (2) in area (3) and remove in direction of arrow.
Installation note:
Make sure the car access system (2) is fitted correctly.
Replacement:
Carry out VEHICLE PROGRAMMING/ENCODING .
