33 52 100 Removing and installing rear left or right spring strut shock absorber

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: With full spring deflection, the coil spring may touch the gaiter, depending on the design.

This is not a fault!

Fig 1: Identifying Rear Spring Strut Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Remove luggage compartment trim panels . See 51 47 151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH PANEL or 51 47 161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .
Secure spring strut against dropping.
Remove CAMBER ARM .

Release screw (1).

Tightening torque 33 52 1AZ .

Installation note:

Replace screws.

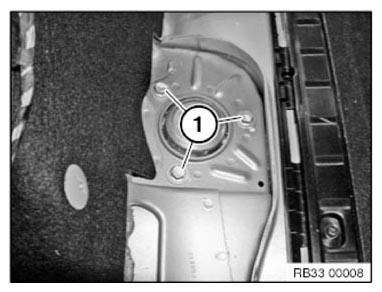

Fig 2: Identifying Rear Spring Strut Shock Absorber Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After completing work:

Perform WHEEL ALIGNMENT CHECK .
