33 32 071 Replacing an upper wishbone
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
- The wishbone must be installed with the opening (U-section) facing downward!
- If the wishbone is bent, the screw connection between the control arm and wheel carrier must be replaced.
Necessary preliminary work:
- Remove REAR WHEEL .

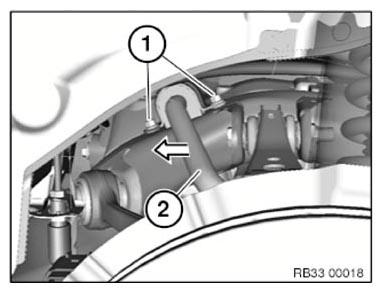

Release left and right screws (1). Slide anti-roll bar (2) forward.
Tightening torque 33 55 1AZ .
Installation note:
Replace screws.

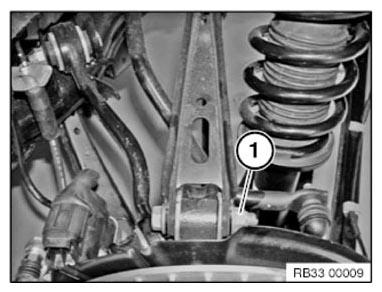

Release nut (1) and remove screw towards front.
Tightening torque 33 32 6AZ
Installation note:
Tighten down screw connection in NORMAL POSITION .
Replace screw and nut.

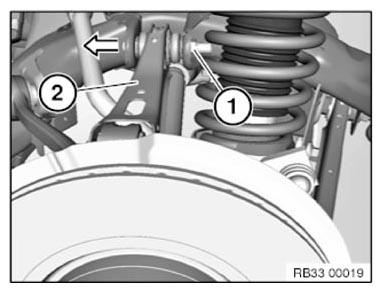

Release nut (1) and remove screw towards front.
Tightening torque 33 32 5AZ
Remove wishbone (2).
Installation note:
The wishbone must be installed with the opening (U-section) facing downward!
Raise wheel carrier using workshop jack.
Bolt heads face in forward direction.
Replace screw and nut.
After installation:
- Carry out wheel alignment procedure . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
