13 62 651 Replacing exhaust backpressure sensor (N47 D20 O1)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out the fault memory of the DDE control unit.
Switch off ignition.
Remove INTAKE SILENCER HOUSING .

WARNING: Risk of burning!
Only perform this repair work on an engine that has cooled down.

Unlock connector (1) and remove.

Unlock exhaust backpressure sensor (2) at holder.

Remove exhaust backpressure sensor (2).

Detach pressure hose (3). Renew pressure hose.

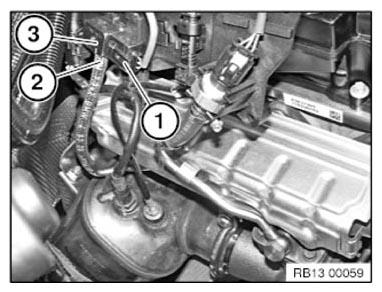

Fig 1: Identifying Exhaust Back Pressure Sensor And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check stored error/fault messages.

Clear diagnostic fault entries from fault memory.
