32 31 102 Replacing steering shaft sleeve

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

Necessary preliminary tasks:

REMOVE lower section of steering shaft.

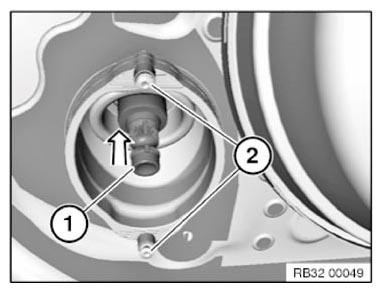

Press the steering shaft (1) into the inside of the footwell.

Pull out locking pins (2)!

Fig 1: Pressing Steering Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

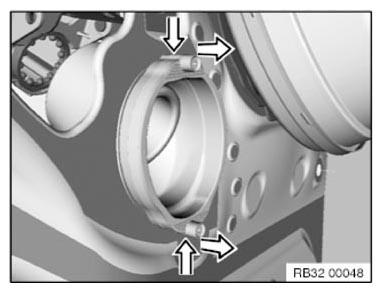

Unlock the steering sleeve by pressing it in the direction of the arrow and remove it towards the outside.

Remove sleeve in direction of engine compartment.

Fig 2: Removing Sleeve Of Engine Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

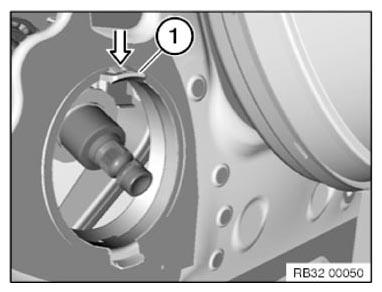

Unlock the holder (1) at the top by pressing it in the direction of the arrow and remove it towards the footwell.

Fig 3: Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.
