Removing the actuator on the left hood hinge
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Deactivate the 48 v ELECTRICAL SYSTEM .
- Disconnect all battery GROUND LEADS .
- Remove the rear left engine compartment COVER .
- Remove the rear right engine compartment COVER .
- Remove left and right WIPER ARM .
- Remove the cowl COVER .
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: 72 00 SAFETY REGULATIONS on handling components with gas generators.
NOTE:

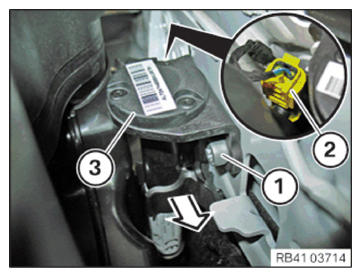

Schematic diagram is for example purposes. Some parts may differ in certain details.
- Loosen screw (1).
- Unlock plug connection (2) and disconnect.
- Pull the actuator (3) slightly forwards in the arrow direction and remove it.
