Installing the hood striker

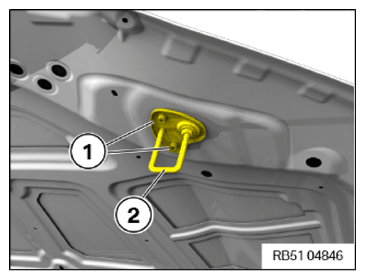

- Position striker (2) on hood and tighten with screws (1).
TIGHTENING TORQUES SPECIFICATION
| Striker to hood | ||
| M6x14 | Tightening torque | 8 Nm |
Follow-up work
- Adjust the hood STRIKER .
- Check the hood GAP DIMENSION .
| Striker to hood | ||
| M6x14 | Tightening torque | 8 Nm |
Follow-up work
