Removing the emblem
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
- Mask the working area with plastic adhesive tape to avoid paint damage.

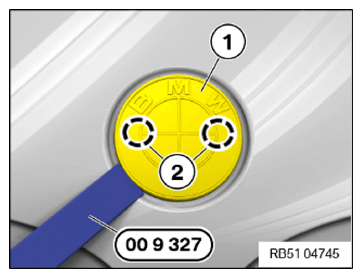

- Beginning in the lower area, lever out and remove the emblem (1) from the guide pins (2) using the special tool 0 496 571 (00 9 327) .
