Installing the emblem

Check

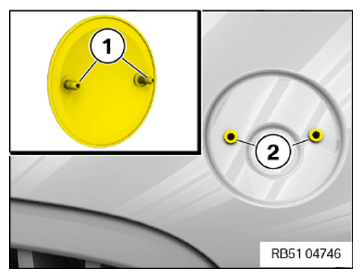

• Check the guide pins (1) and the grommets (2) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Guide pins (1) or grommets (2) are damaged.

Measure

• Replace the emblem as well as the guide pins (1) and nozzles (2).

• Coat the guide pins (2) using lubricant.
  INSTALLATION AID DESCRIPTION



  Lubricants G14

  900 ml, Can

  83232360412

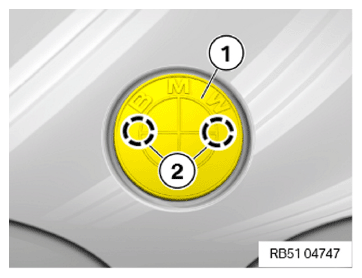

• Insert the emblem (1) in the guide pins (2) and press down.

Courtesy of BMW OF NORTH AMERICA, INC.
