Remove the trim from the side panel
NOTE:
Description is for left component only. Procedure on the right side is identical.

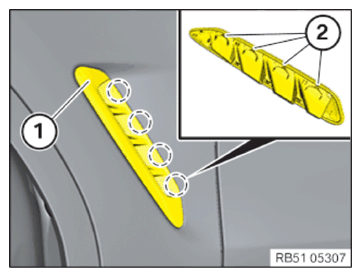

- Carefully release trim (1) at the side panel from the detents (2) using special tool 0 493 681 (64 1 020) and feed out of the side panel to the rear.
The trim (1) at the side panel cannot be removed without damaging it and must always be replaced.
