Installing The A-Pillar Outside In The Windshield Area
NOTE:
TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: 41 00... WORKSHOP EQUIPMENT (BMW AND MINI VEHICLES) (X3) .
Use only approved spot welder for repair.
For additional information see: 41 00... WORKSHOP EQUIPMENT (BMW AND MINI VEHICLES) (X3) .

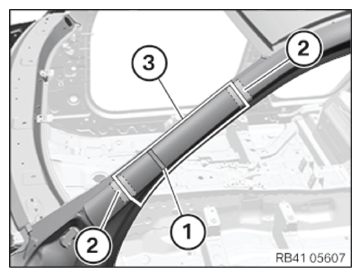

- Apply sealant D1 to cavity sealing (1).CONSUMABLE DESCRIPTION
Sealant D1 (seam sealing) 310 ml 83422409985 - Install the new part and the reinforcement plates (2) and weld in the area (3).
NOTE:
RISK OF DAMAGE
Damaging the airbag
Kinking or bending the airbag may damage the airbag and result in a malfunction of the airbag.
Damaging the airbag
Kinking or bending the airbag may damage the airbag and result in a malfunction of the airbag.
- Handle airbag carefully and move it minimally by hand.
- Do not kink or bend the airbag.

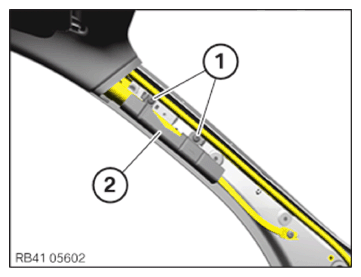

- Open the hook and loop fastener (2) and remove the protective sleeve (1).
Check

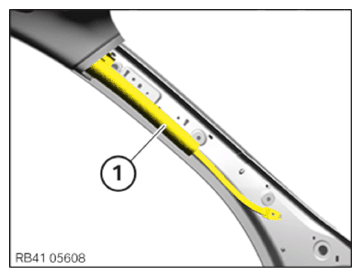

- Check the airbag (1) in the area of the protective sleeve for damage.
Result
» The airbag is damaged.
Measure
- Replace the airbag.
Parts: Airbag
- Replace the airbag.

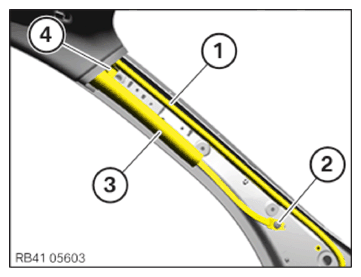

- Clip the airbag (3) into place with the clamps (4).
- Tighten the screw (2) for the airbag (3).TIGHTENING TORQUES SPECIFICATION
Head airbag 8 Nm - Fasten the cable harness (1).
- Position the deformation element (2) and tighten screws (1).
TIGHTENING TORQUES SPECIFICATION
| Deformation element | |
|---|---|
| Screw M6 | 8 Nm |
Follow-up work
