Removing the hood seal at the side on the left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove seal for the side front flap
.

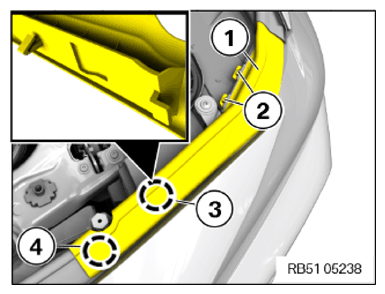

- Unclip seal from (1) the external detents (2) and the internal detent (3).
- Pull out seal for side front flap (1) from the guide (4) and remove.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
