Partially removing the wheel arch cover on the front left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.

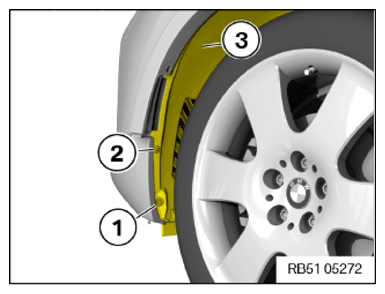

Partially removing the front wheel arch cover
- Loosen screw (1)
.
- Release the blind rivet (2)
.
- Fold back the front wheel arch cover (3)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
