Partially installing the wheel arch trim on the front left and right

NOTE: Description is for left component only. Procedure on the right side is identical.

Partly install the front wheel arch trim

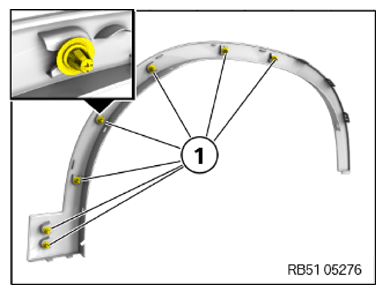

Check the clips (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

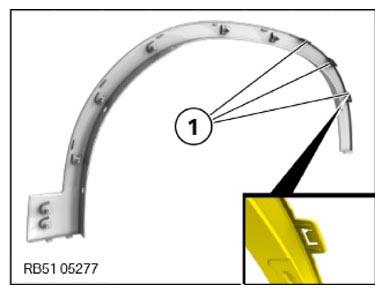

Check the latches (1) for damage and replace the front wheel arch trim if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

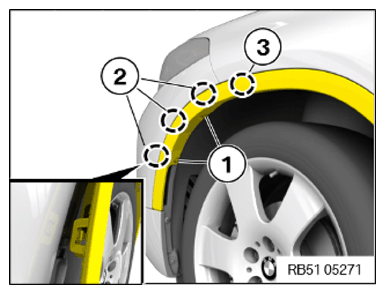

Clip the front wheel arch trim in the area of the bumper cover into the clip (3) and clip into the detents (2) .
Mount blind rivet (1) using the special tool 0 496 521 (00 2 230) .

Courtesy of BMW OF NORTH AMERICA, INC.
