Partially install front left and right wheel arch cover

Partially install the front wheel arch cover

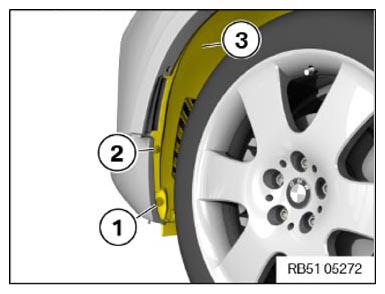

• Fold the front wheel arch cover (3)  forward.
• Mount blind rivet (2) using the special tool  0 496 521 (00 2 230)  .
• Tighten down screw (1)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Front wheel arch cover to front bumper panel
  Hexagon screw for thermoplastic plastic	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.
