Install hood seal on left and right sides

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing seal for side hood

Check

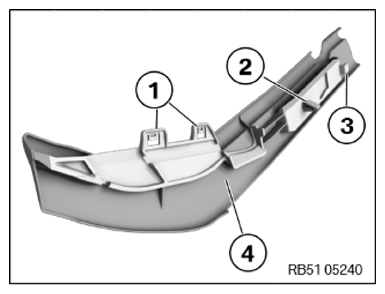

Check latch mechanisms (1) and (2) and guide (3) on side hood seal (4) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Latch mechanisms (1), (2) or guide (3) are/is damaged.

Measure

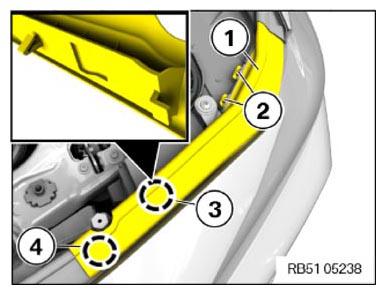

Insert the hood seal on the side (1) in the guide (4).
Clip in side hood seal (1) into inner latch mechanism (3) and outer latch mechanisms (2).

Courtesy of BMW OF NORTH AMERICA, INC.
