32 00... General chassis and suspension definitions

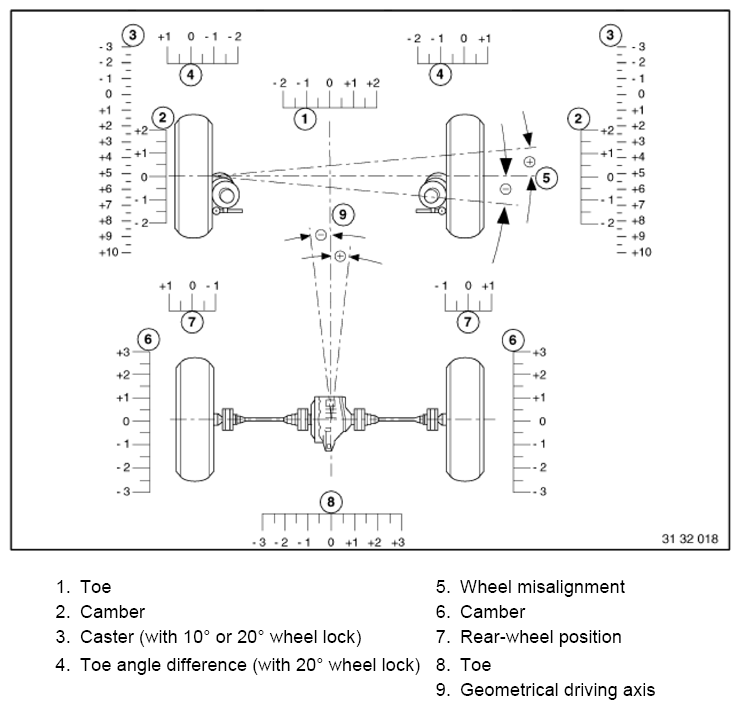

Fig 1: Identifying Toe And Camber Angle

G10040452

Courtesy of BMW OF NORTH AMERICA, INC.
