33 33 040 Removing and installing/replacing reinforcement plate
IMPORTANT:
Observe SAFETY INSTRUCTIONS
for raising the vehicle
Driving without reinforcement plate is not permitted!
Driving without reinforcement plate is not permitted!
Necessary preliminary tasks:
- Remove the DIFFUSER .

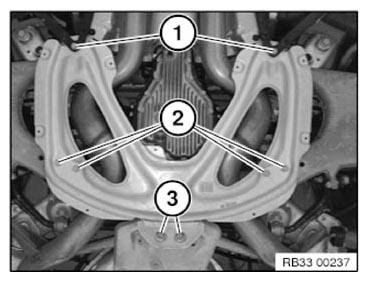

Release screws (1).
Tightening torque 51 61 16AZ .
Installation note:
Replace screws (1).
Unfasten screws (2).
Tightening torque 33 33 5AZ .
Release screws (3).
Tightening torque 33 33 6AZ .
Installation note:
Replace screws (3).
Remove reinforcement plate to the rear.
