31 12 003 Removing and installing/replacing top right wishbone (M6)
NOTE:

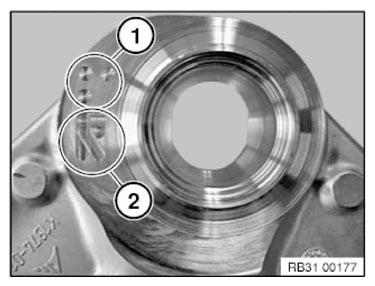

The wishbones are marked with R and L (2) and 2, 3 or 4 bore holes (1):
R or L (2) - Right or left wishbone
• • (1) - Wishbone underdimension variant
• • • (1) - Wishbone normal position (standard part - see Fig 1)
• • • • (1) - Wishbone overdimension variant
These camber correction arms are used to correct the camber values by 20 minutes. To be used only if the tolerance values are exceeded or undershot!
R or L (2) - Right or left wishbone
• • (1) - Wishbone underdimension variant
• • • (1) - Wishbone normal position (standard part - see Fig 1)
• • • • (1) - Wishbone overdimension variant
These camber correction arms are used to correct the camber values by 20 minutes. To be used only if the tolerance values are exceeded or undershot!
Necessary preliminary work:
- Remove FRONT WHEEL .
- Remove right-hand INTAKE SILENCER HOUSING
IMPORTANT:
The screw connection for the spring strut/wishbone on the bottom will not be released!
Further procedure is identical to:
- Removing and installing/replacing TOP LEFT CONTROL ARM .
