00 11 229 Changing/topping up/checking gear oil in manual transmission

IMPORTANT: Transmission oil:
Refer to OPERATING FLUIDS .
Failure to comply with this instruction will result in serious damage to the transmission!

Recycling:

Catch and dispose of gear oil with suitable equipment.

Observe country-specific waste disposal regulations.

Necessary preliminary tasks:

Draining transmission oil:

Open oil drain plug (1) and drain gear oil
Activate transmission oil pump using BMW diagnosis system for approx. 30 seconds
The residual oil is pumped out of the pump circuit of the transmission oil cooler into the transmission housing and flows off
Allow gear oil to flow off sufficiently
Clean oil drain plug (1) and screw in Tightening torque 23 00 2AZ .

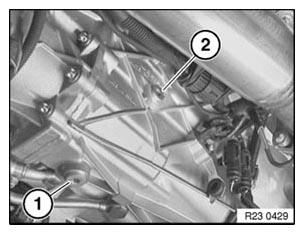

Fig 1: Identifying Oil Drain Plug
Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 23 11 7AZ .

Check transmission oil screen, replace if necessary.

Installation note:

Replace sealing ring

Fig 2: Identifying Transmission Oil Screen Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Adding gear oil.

Undo oil filler plug (2).
Pour in oil until it overflows at inspection opening.
Check gear oil level (see below).

Fig 3: Identifying Oil Filler Plug
Courtesy of BMW OF NORTH AMERICA, INC.

Checking gear oil level:

NOTE: Can also be carried out individually - without an oil change!
