11 00 Removing and installing/replacing the acoustic cover (N63 B44 O 0/1)

Remove acoustic cover (1) in following steps:

• To raise
• Remove in direction of travel

Installation note:

Insert acoustic cover (1) into existing rubber guides.

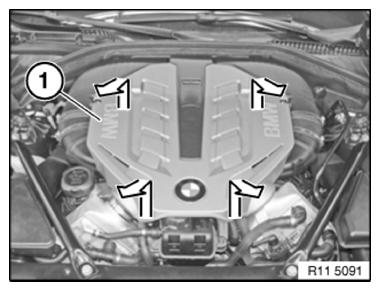

Fig 1: Removing/Installing Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.
