11 22 000 Removing and installing/replacing flywheel (N63)
Special tools required:
Necessary preliminary tasks:
- Remove automatic transmission
- Remove MANUAL TRANSMISSION
- Remove CLUTCH

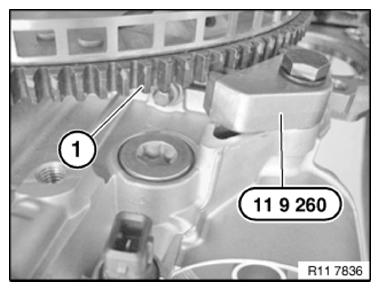

Secure flywheel (1) with special tool 11 9 260 .
Automatic transmission:

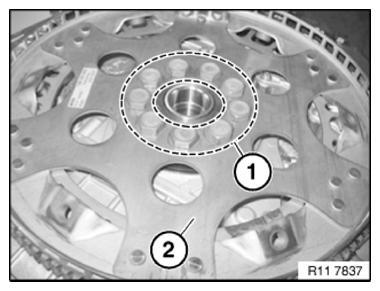

Release flywheel screws in area (1).
Remove flywheel (2).
Installation note:
Clean threads on flywheel screws in crankshaft.
Flywheel (2) is secured with an alignment pin.
Fit flywheel (2).
Fit new flywheel bolts.
Tightening torque 11 22 1AZ .
Manual gearbox:
Release flywheel screws in area (1).
Remove flywheel (2).
Installation note:
Clean threads on flywheel screws in crankshaft.
Flywheel (2) is secured with an alignment pin.
Fit flywheel (2).
Fit new flywheel bolts.
Tightening torque 11 22 2AZ .
