Overview Special Tool

Use in Activity: 51

0 490 504 (00 9 120) Torque angle measuring dial

SPECIAL TOOL DESCRIPTION

Usage For torsion angle adjustment of cylinder head bolts (all engines) And reinforcement plate front axle support E46
Included in the tool or work
Storage location A5
Replaced by In connection with SI-Number

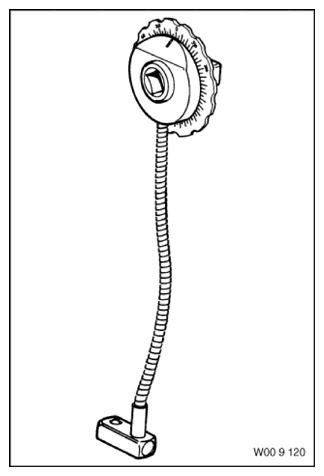

Fig 1: Identifying Torque Angle Measuring Dial (0 490 504)
G10041966Courtesy of BMW OF NORTH AMERICA, INC.
