18 00 020 Removing and installing complete exhaust system (N63)

Special tools required:

31 2 220

WARNING: Risk of burning!
Only perform this repair work after engine has cooled down.
Danger of injury!
Removal of the exhaust system must be carried out with the assistance of a second person.

Necessary preliminary tasks:

F12 only:
Remove TRAILING LINKS .

Support exhaust system with special tool 31 2 220.

Fig 1: Supporting Exhaust System

Courtesy of BMW OF NORTH AMERICA, INC.

Version 1:

Picture shows the left side, the procedure for the right side is identical.

Unscrew nuts (1).

Replace self-locking nuts.

Tightening torque 18 31 1AZ .

Fig 2: Identifying Exhaust System Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

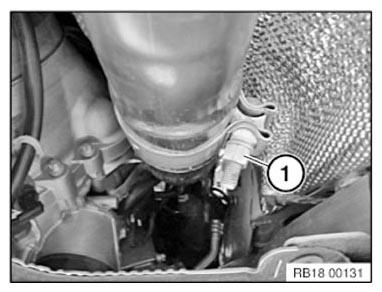

Version 2:

Picture shows the right side, the procedure for the left side is identical.

Release clamp (1).

Tightening torque 18 31 1AZ .

Fig 3: Identifying Exhaust System Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

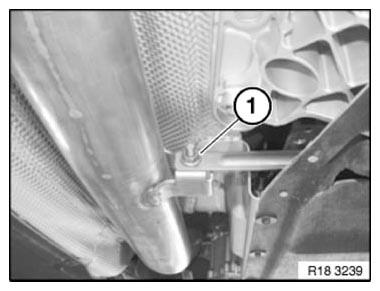

Picture shows the left side, the procedure for the right side is identical.

Slacken nut (1).

Tightening torque 18 20 1AZ .

Fig 4: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

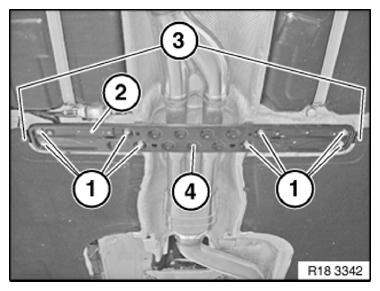

Release screws (1).

Tightening torque 18 20 6AZ .

Only when independent heating is fitted: release screw (2) on metering pump.

Tightening torque 18 20 7AZ .

Release screws (3) on underbody panelling.

Remove reinforcement plate (4).

Fig 5: Identifying Reinforcement Plate, Underbody Panelling And Metering Pump Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Picture shows the left side, the procedure for the right side is identical.

Slacken nut (1).

Tightening torque 18 20 4AZ .

Fig 6: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

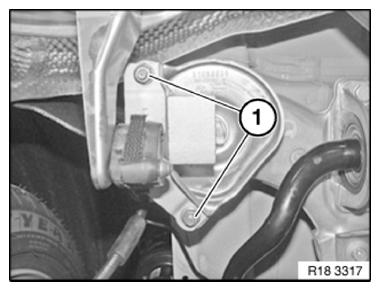

Picture shows the left side, the procedure for the right side is identical.

Unscrew nuts (1).

Tightening torque 18 20 5AZ .

Fig 7: Identifying Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Picture shows the left side, the procedure for the right side is identical.

Slacken nut (1).

Tightening torque 18 20 5AZ .

Detach hose (2) on vacuum unit.

Lower and remove exhaust system with assistance of a second person.

Fig 8: Identifying Hose And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check rubber mount for damage.

If necessary, replace damaged rubber mounts.

Check exhaust system for leak tightness.
