51 61 015 Removing and installing/replacing front axle support V-struts
IMPORTANT:
Observe safety instructions for raising the vehicle
Driving without the V-strut is not permitted!
Driving without the V-strut is not permitted!
Necessary preliminary tasks:
- Release UNDERBODY PANELLING LEFT AND RIGHT in the front part

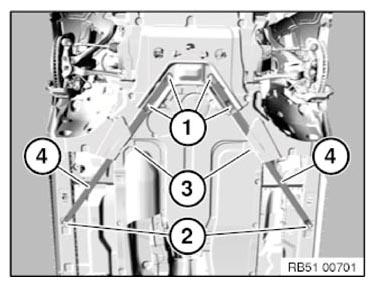

Release screws (1).
Tightening torque 51 61 15AZ .
Unfasten screws (2).
Tightening torque 51 61 10AZ .
Unscrew screws (3).
Tightening torque 51 71 1AZ .
Remove V-struts (4).
