Completely remove and install the propeller shaft made of steel (inserted at the rear)

Special tools required:

• 00 9 120
• 00 9 130
• 33 5 070
• 2 348 293

Replacement of the sunk nut on the rear axle differential is mandatory!

The sunk nut already has a screw locking.

In order to avoid hardening during installation, the recessed nut must be screwed in an operation  within 5 min.

After the propeller shaft has been screwed into the rear axle differential (recessed nut), a minimum hardening time of two hours is  necessary.

The hardening time may be extended at lower temperatures!

Failure to comply with these instructions may cause serious damage!

Necessary preliminary work:

• Remove rear UNDERBODY PROTECTION .
• Remove complete EXHAUST SYSTEM .
• Remove heat shields.

Removal:

1. The flexible disc connection (1) on the front at the propeller shaft must  be marked in one plane with the flexible disc (2) and the three-bolt flange (3) before loosening.
2. During installation the three-bolt flange (3) must be forced back together again with the flexible disc (2) in the same position.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws.

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (1)

Using a suitable tool (2), secure propeller shaft at center universal joint against twisting.

Remove screws of center mount fully only after opening insert nut.

Courtesy of BMW OF NORTH AMERICA, INC.

Failure to comply with this instruction may result in serious damage to the rear axle final drive.

Courtesy of BMW OF NORTH AMERICA, INC.

Turning the recessed nut in counter-clockwise direction will automatically tighten the recessed nut further and significantly damage the bi-hexagonal flange nut.

If the insert collar of the flange nut was damaged, the propeller shaft can no longer  be secured using a new sunk nut and the rear axle differential must be replaced.

Loosen recessed nut clockwise with special tools  33 5 070 and 2 348 293.

Remove retaining clip (1) and gasket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove insert nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check centering.

Replace damaged centering mount.

Grease centering mount. Approved grease: refer to PROPELLER SHAFT - OPERATING FLUIDS .

Courtesy of BMW OF NORTH AMERICA, INC.

Before installing propeller shaft:

Clean insert collar (1) on flange nut and gearing on bevel pinion (2) of all residues and degrease!

Top up insert collar (1) with grease.

Approved grease: refer to PROPELLER SHAFT - OPERATING FLUIDS .

Courtesy of BMW OF NORTH AMERICA, INC.

Clean thread (1) of joint hub to remove adhesive residues.

Clean hub teeth (2), then coat with grease.

Approved grease: refer to PROPELLER SHAFT - OPERATING FLUIDS .

Courtesy of BMW OF NORTH AMERICA, INC.

Parts  : Replace gasket, sunk nut (1) and retaining clip (2).

Place insert nut (1) with seal in insert collar of flange nut.

Install retaining clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation sequence:

1. Attach propeller shaft to transmission.
2. Attach propeller shaft to rear axle differential.
3. Attach center mount.

Screw-fastening sequence:

1. Recessed nut.
2. Flexible disc to transmission.
3. Center mount.

• During installation the three-bolt flange (3) must be forced back together again with the flexible disc (2) on the marked plane.

Parts  : Replace ZNS screws and self-locking nuts.

Courtesy of BMW OF NORTH AMERICA, INC.

Mount new screws and nuts.

Courtesy of BMW OF NORTH AMERICA, INC.

Push on propeller shaft (1) up to the limit position on the recessed nut.

Screw recessed nut (2) min. 2 threads manually onto propeller shaft (1) and tighten.

Courtesy of BMW OF NORTH AMERICA, INC.

Using a suitable tool (1), secure propeller shaft at center universal joint against twisting.

Courtesy of BMW OF NORTH AMERICA, INC.

Failure to comply with this instruction may result in serious damage to the rear axle final drive.

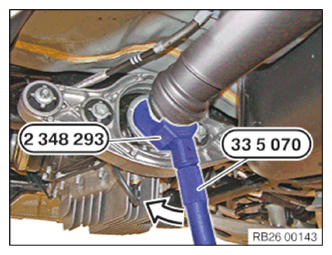

Screw in recessed nut counter-clockwise  using special tools 33 5 070 and 2 348 293 (see direction of arrow in the illustration).

The sunk nut must be screwed into place within 5 minutes.

Tightening torque 26 11 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

A  - incorrectly screwed -→ thread start of propeller shaft must not be visible!

B  - correctly screwed →

Distance between recessed nut and propeller shaft: 0 to max. 4 mm

Courtesy of BMW OF NORTH AMERICA, INC.

Brace mounting bolts of flexible disc on nut and tighten by screw.

Tightening torque 26 11 1AZ .

Secure angle of rotation special tool 00 9 120 with magnets 00 9 130 to vehicle underbody and screw down further according to angle of rotation.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1).

Tightening torque 26 11 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install heat shields.
• Completely install the EXHAUST SYSTEM .
• Install the rear UNDERBODY PROTECTION .
