Replacing a rear pulse sensor

Necessary preliminary tasks:

Slacken nut (1).

Pull wheel arch trim (2) gently to one side.

Disengage cable from holders (3).

Courtesy of BMW OF NORTH AMERICA, INC.

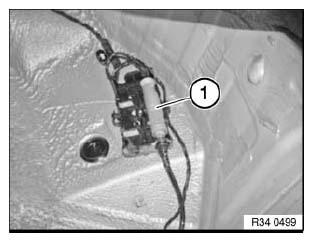

Disconnect plug connection (1).

Installation note:

Ensure proper locking of the plug connector and proper seating of the cable in the brackets.

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage cable from holders (1).

Unfasten socket head cap screw (2).

Withdraw wheel speed sensor (3) from bore hole.

Installation note:

Tightening torque 34 51 4AZ .

Clean bore hole for pulse sensor and lubricate with Staburags NBU 12/K lubricating grease.

IMPORTANT: Check sensor head prior to installation for external damage, replacing if necessary.
