Replacing guide sleeve for clutch operator (GS6-45BZ)

Necessary preliminary tasks:

• Remove TRANSMISSION .
• Remove CLUTCH OPERATOR AND RELEASE LEVER from guide tube.

Removal:

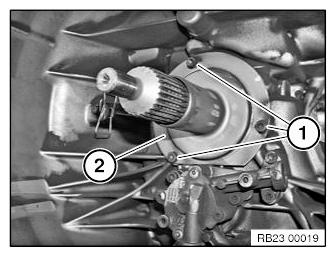

Loosen screws (1).

Remove guide tube (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Preparation for installation:

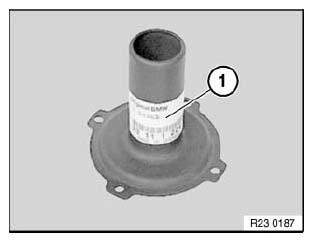

Remove all traces of label (1) and adhesive from guide tube using suitable solvent.

Courtesy of BMW OF NORTH AMERICA, INC.

Install guide tube (2).

Tighten down screws (1).

Part  : Replace screws (1).

Tightening torque: 23 11 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install CLUTCH OPERATOR and release lever.
• Install the TRANSMISSION .
