23... Universal BMW transmission take-up

Special tools required :

00 2 030
23 4 050

NOTE:

The universal transmission bracket is introduced for the E60 AWD
Suitable for manual and automatic transmissions

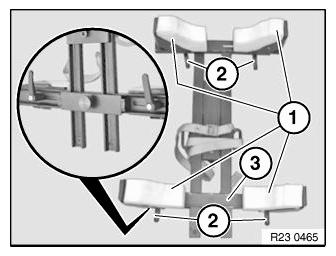

IMPORTANT: Front and rear supports (1) can be laterally adjusted by means of screws (2).
Carrier (3) of rear supports (1) can be longitudinally adjusted by means of screw.
Supports must be adapted in length and width to the transmission.

Courtesy of BMW OF NORTH AMERICA, INC.

Supporting transmission :

Support transmission with special tools 23 4 050, 00 2 030.

IMPORTANT: Transmission must be secured with tensioning strap (1).

Courtesy of BMW OF NORTH AMERICA, INC.
