Replacing gearshift arm for gearshift lever mount

Necessary preliminary work:

• Remove GEARSHIFT LEVER .

Detach support bearing (1) from gearshift arm.

Installation note:

Grease bearing journal of gearshift arm.

Grease: refer to BMW SERVICE OPERATING FLUIDS .

Courtesy of BMW OF NORTH AMERICA, INC.

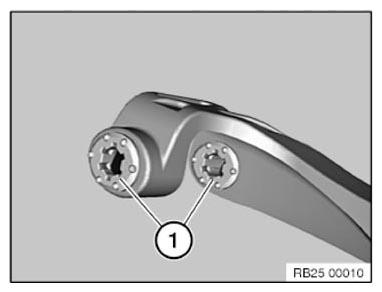

Push the bearing bushes (1) out.

Coat new bearing bushes with Circolight (sourcing reference: BMW Parts Department).

Press the bearing bushes (1) into the gearshift arm until the side faces protrude evenly.

Installation note:

If the bearing bushes are damaged, replace them.

Grease bearing bushes.

Courtesy of BMW OF NORTH AMERICA, INC.

Grease: refer to BMW SERVICE OPERATING FLUIDS .
