Replacing spring for clutch pedal

Necessary preliminary tasks:

Remove TRIM PANEL FOR PEDAL MECHANISM .

G10095949

Courtesy of BMW OF NORTH AMERICA, INC.

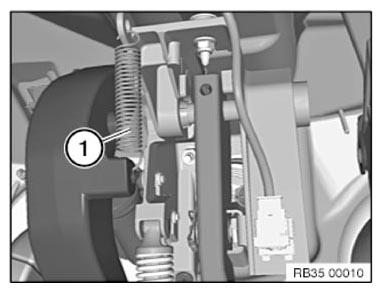

Disconnect return spring (1).
