Removing and installing or replacing clutch pedal

Necessary preliminary tasks:

• Remove TRIM PANEL for foot levers.
• If necessary, remove over-center helper spring.
• If applicable, detach the air duct for footwell ventilation and push it up.

Courtesy of BMW OF NORTH AMERICA, INC.

Push the locking bolts (2) out.

Installation note:

Replace the locking bolts (2).

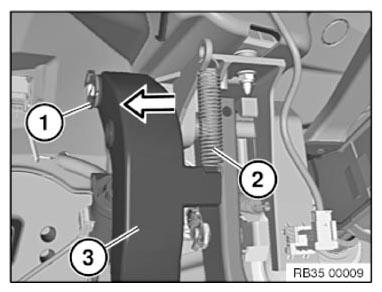

Detach retaining clip (1).

Unhinge the recoil spring (2).

Pull the clutch foot levers (3) off the bearing support.

Installation note:

Replace retaining clip (1).

Locking clip (1) must be seated with both legs in the pin groove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check bearing bushings (1) and replace if necessary.

Lightly grease bearing bushings (1).

Courtesy of BMW OF NORTH AMERICA, INC.
