Removing and installing complete bearing support for foot pedal
Necessary preliminary work:
- Remove TRIM PANEL FOR PEDAL MECHANISM .
- Detach the air duct for footwell ventilation and slightly push it up.

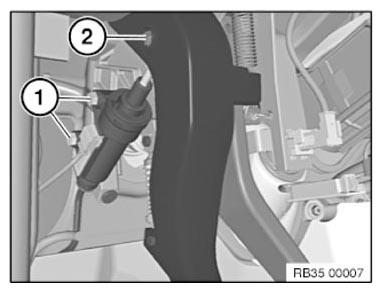

Release screws (1).
Push the locking bolts (2) out.
Installation note:
Pipe remains connected.
Replace the locking bolts (2).
Replace self-locking nuts.
Tightening torque 21 52 2AZ .
Pull the retaining clip (1) off the brake pedal and pull out the locking pin.
Unscrew nuts (2).
Installation note:
Replace self-locking nuts.
Tightening torque 35 11 1AZ .

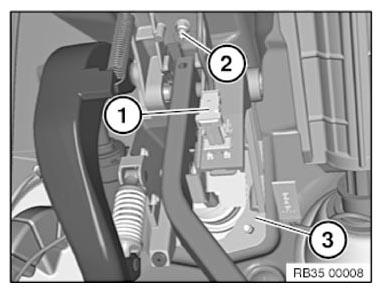

Disconnect plug connection (1).
Loosen the nut (2) and swivel out the bearing support (3).
Installation note:
First, tighten the nuts on the screw connection to the brake booster and then tighten the nut (2).
Replace self-locking nuts.
Tightening torque 35 11 1AZ .
